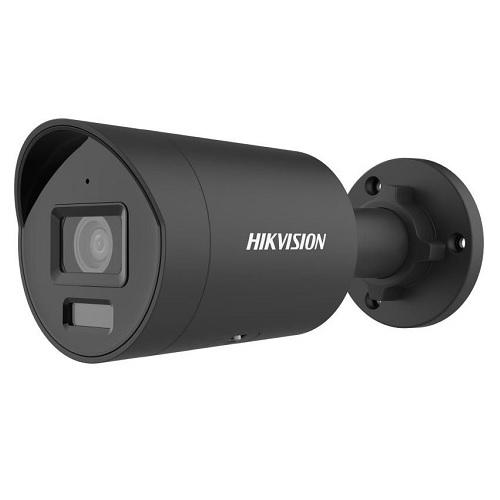

IP kamera IP kamera Hikvision DS-2CD2047G2H-LIU F2.8 juoda

Hikvision bullet DS-2CD2047G2H-LIUeF F2.8 (juoda, 4 MP, 40 m. IR; 40 m. LED, Hybrid Light)

• MP (MegaPixel): 4 MP.
• Objektyvas: 2.8 mm, horizontalus FOV: 104°.
• Technologija: Hybrid Light.
• Integruotas mikrofonas: Taip.
• Naktinis pašvietimas: 40 m. IR; 40 m. LED.
• Vieta microSD talpai: Taip, 512GB.
• Darbo sąlygos: -30 °C iki 60 °C.
• Saugos lygis: IP67.
• Vaizdo suspaudimas: H.265+.
• WiFi: Ne.
• Laikiklis/bazė (papildomai): DS-1280ZJ-XS.
• Lauko/vidaus: Lauko.

Aprašymas

Kamera
• Sensorius: 1/1.8" Progressive Scan CMOS.
• Maks. rezoliucija: 2688 × 1520.
• Min. apšvietimas: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light.
• Užrakto greitis: 1/3 s to 1/100,000 s.
• Day & Night: IR cut filter.
• Kampo keitimas: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°.
Lęšis
• Lęšio tipas: Fixed focal lens, 2.8 .
• Focal Length & FOV: 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°.
• Lęšio montavimas: M16.
• Rainelės tipas: Fixed.
• Diafragama: F1.0.
• Ryškumo gylis: 2.8 mm: 2.5 m to infinite.
DORI
• 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m.
Apšvietimas
• Papildomo apšviešimo tipas: IR,White Light.
• Papildomo apšvietimo diapazonas: Up to 40 m.
• Išmanus papildomas apšvietimas: Yes.
• IR bangos ilgis: 850 nm.
Vaizdas
• Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720).
• Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360).
• Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360).
The third stream is supported under certain settings.
• Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Third stream is supported under certain settings.
• Vaizdo bitų greitis: 32 Kbps to 8 Mbps.
• H.264 tipas: Baseline Profile,Main Profile,High Profile.
• H.265 tipas: Main Profile.
• Bitų greičio kontrolė: CBR,VBR.
• Scalable Video Coding (SVC): H.264 and H.265 encoding.
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream.
Garsas
• Garso suspaudimas -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC.
• Garso bitų greitis -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3).
• Garso atrankos dažnis -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz.
• Pašalinių garsų šalinimas -U: Yes.
Internetas
• Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP.
• Tiesioginis vaizdo žiūrėjimas: Up to 6 channels.
• API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP.
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user.
• Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address).
• Vidinė atmintis: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR).
• Klientas: iVMS-4200,Hik-Connect,Hik-Central.
• Naršyklė: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+.
Nuotrauka
• Nuotraukos parametrų keitiklis: Yes.
• Nuotraukos nustatymai: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser.
• Diena/Naktis režimas: Day,Night,Auto,Schedule.
• Nuotraukų pagražinimas: BLC,HLC,3D DNR.
• SNR: > /= 52 dB.
• Wide Dynamic Range (WDR) 130 dB.
• Privatumo kaukė 4 programmable polygon privacy masks.
Sąsaja
• Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port.
• Vidinė atmintis: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB.
• Įmontuotas mikrofonas -U: Yes.
• Perkrovimo mygtukas: Yes.
Funkcijos
• Pagrindinės funckcijos: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception.
• Sąsaja: Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email.
• Išmaniosios funkcijos: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection.
Išmaniosios funkcijos
• Veido atpažinimas: Yes.
Pagrindinis
• Sistemos parametrai: 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W.
• Medžiaga: Front cover: Metal, body: Metal, bracket: Metal.
• Dydis: D 74.4 mm × 179.2 mm (D2.9" × 7.1").
• Pakuotės dydis: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6").
• Svoris: Approx. 525 g (1.2 lb.).
• Svoris su įpakavimu: Approx. 750 g (1.7 lb.).
• Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing).
• Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing).
• Pagrindinės funkcijos: Heartbeat,mirror,password reset via email,pixel counter,anti-banding.
• Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian.
Patvirtinimai
• EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015,
RCM: AS/NZS CISPR 32: 2015.
• Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005.
• Aplinkosauga CE-RoHS: 2011/65/EU.
• Apsauga IP67: IEC 60529-2013.
