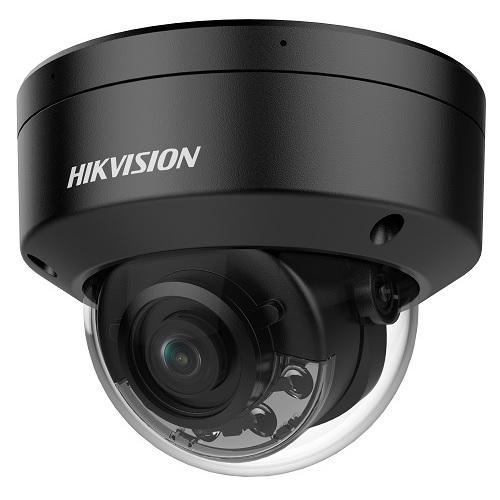

IP kamera IP kamera Hikvision DS-2CD2187G2H-LISU 2.8mm, juoda

Modelis: DS-2CD2187G2H-LISU, 2.8mm, juodos spalvos
Rezoliucija: 8MP
Objektyvas: 2.8 mm, horizontalus FOV 105.1°
Technologija: Smart Hybrid Light, ColorVu
Integruotas mikrofonas: Taip
Naktinis pašvietimas: 30 m. LED
Vieta microSD talpai: Taip, 512GB
Darbo sąlygos: -30 °C iki 60 °C
Saugos lygis: IP67, IK10
Vaizdo suspaudimas: H.265+
WiFi: Ne
Lauko/vidaus: Lauko

Aprašymas:

Kamera
• Sensorius: 1/1.8" Progressive Scan CMOS
• Maks. rezoliucija: 3840 × 2160
• Min. apšvietimas: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Užrakto greitis: 1/3 s to 1/100,000 s
• Kampo keitimas: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lęšis
• Lęšio tipas: Fixed focal lens, 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
• Lęšio montavimas: M16
• Rainelės tipas: Fixed
• Diafragama: F1.0
• Ryškumo gylis: 2.8 mm, 3.3 m to infinite
DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Apšvietimas
• Papildomo apšviešimo tipas: IR, White Light
• Papildomo apšvietimo diapazonas: Up to 30 m
• Išmanus papildomas apšvietimas: Yes
• IR bangos ilgis: 850 nm
Vaizdas
• Pagrindinis srautas:
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Antrinis srautas:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Trečias srautas:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
• Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Vaizdo bitų greitis: 32 Kbps to 16 Mbps
• H.264 tipas: Baseline Profile, Main Profile, High Profile
• H.265 tipas: Main Profile
• Bitų greičio kontrolė: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Scalable Video Coding (SVC)H.264 and H.265 encoding
Garsas
• Garso tipas: -SU: Mono sound
• Garso suspaudimas -SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Garso bitų greitis -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64; Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Garso atrankos dažnis -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Pašalinių garsų šalinimas: -SU: Yes
Internetas
• Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Tiesioginis vaizdo žiūrėjimas: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Saugykla: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Klientas: iVMS-4200, Hik-Connect, Hik-Central
• Naršyklė: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Nuotrauka
• Nuotraukos parametrų keitiklis: yes
• Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Diena/Naktis režimas: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: > /= 52 dB
• Nuotraukų pagražinimas: BLC,HLC,3D DNR
• Privatumo kaukė: 4 programmable polygon privacy masks
Sąsaja
• Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB
• Įmontuotas mikrofonas: -SU: Yes
• Garsas: -SU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KiloOhm, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium
• Signalizacija: -SU: 1 input, 1 output (max. 12 VDC, 30 mA)
• Perkrovimo mygtukas: Yes
Funkcijos
• Pagrindinės funkcijos: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Išmaniosios funkcijos: Scene change detection
• Sąsaja: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Išmaniosios funkcijos
• Veido atpažinimas: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Pagrindinis
• Sistemos parametrai: 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
• Medžiaga: Base: aluminum alloy, cover: aluminum alloy
• Dydis: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
• Pakuotės dydis: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
• Svoris: Approx. 525 g (1.2 lb.)
• Svoris su įpakavimu: Approx. 750 g (1.7 lb.)
• Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Pagrindinės funkcijos: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Patvirtinimai
• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
• Saugumas: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Aplinkosauga: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Apsauga: IP67: IEC 60529-2013, IK10: IEC 62262:2002
