Laser Engraver Upgrade Pack (500mW)

Prekės kodas: 987
Kaina su PVM: € 123.99 € 174.23
Susisiekti dėl likučio
Pirkti



Aprašymas

Rinkinys skirtas lazerinio graviravimo funkcijai.

Tinka XY Plotter Robot Kit, mDrawbot Kit ir I 3D Printer Kit.

Graviruoti galima ant įvairių paviršių – plastiko/akrilo plokštės, medinės/popierinės lentos, džinso ir kt.

Dėmesio! Naudojantis lazeriu reikia saugoti odą ir akis! Vaikai iki 18 metų lazerį naudoti gali tik su suaugusiųjų priežiūra.

Laser Engraver Upgrade Pack is for XY Plotter Robot Kit V2.0, it can engrave by laser. Note: The higher output power of the laser, the better processing capacity it is. The 500mW laser engraver can do better engraving and cutting ability, it takes less time and more efficient than the 250mW laser engraving.

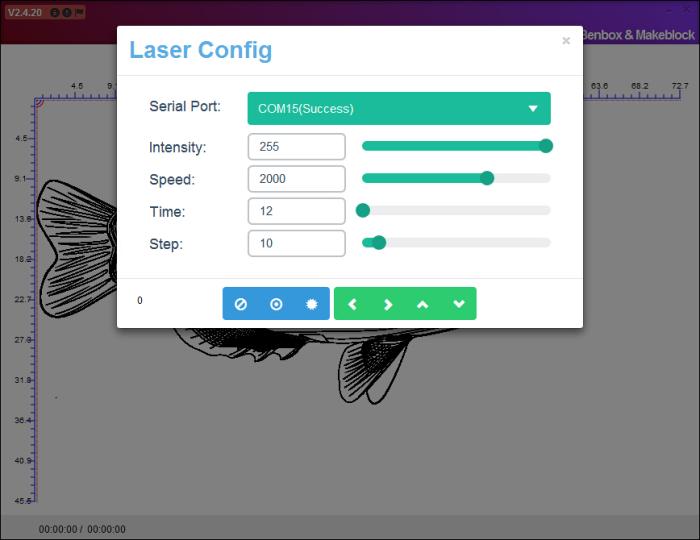

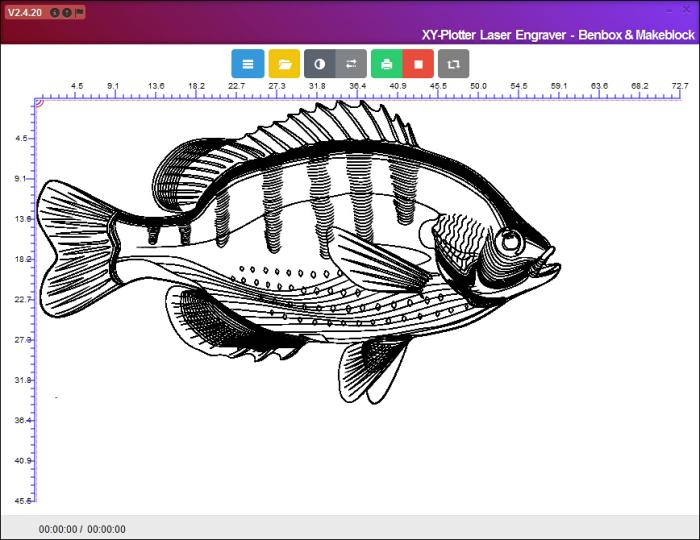

Follow the instruction, assembly the lasers elements to the assembled XY Plotter Robot Kit V2.0 and upload the firmware to the Me Baseboard. You can use Benbox Laser Engraver to control the laser engraver robot to engrave fabulous artworks. For reference video as below: (https://www.youtube.com/watch?v=Y2Hj5XXX_hc).

Wavelength γ= 405nm Blue-Violet Laser 450~500mW semiconductor diode lasers elements Working area: 300mm×350mm Engrave accuracy:0.1mm

Suggested material

  • (1) suggested engrave material: wood board, colorful paper cards, dark opaque acrylic, etc.
  • (2) suggested cutter material: colorful paper cards, foam papers, etc.

Usage

For the places required engraving or cutter such as familes, hackerspaces, schools, companies, etc. Minimum age:18 ages. Under the age of 18, please use under the care of their parents

Security

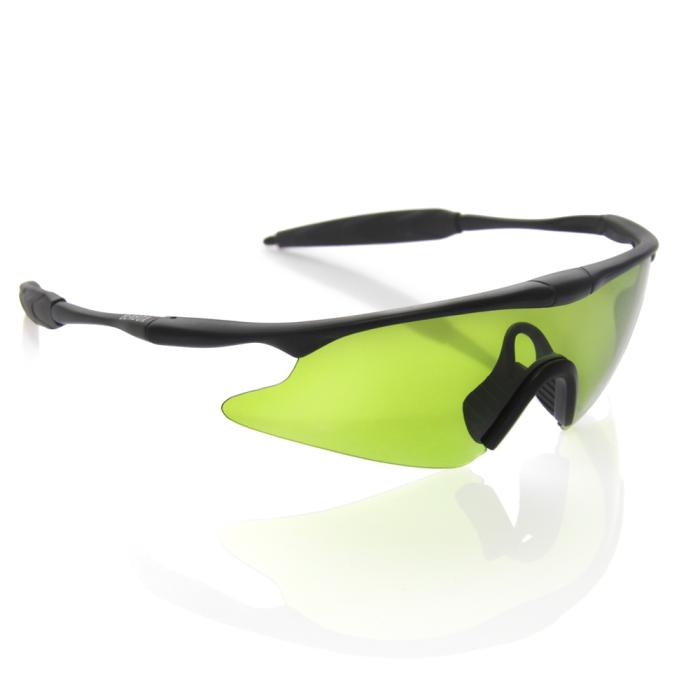

Pay attention when you’re operating the blue-violet laser MAKE SURE you’re wearing the goggles to avoid the dangers. laser-engraver-upgrade-pack-for-xy-plotter-robot-kit-v2.0-warning-card.jpg Additional accessories: (1) A pair of blue-violet laser goggles. Goggles picture above is for reference only, please in kind prevail (2) Several colorful paper cards

Optional materials

The laser tubes are also available.

Specification

  • Frame: Anodized aluminum
  • Physical Dimensions(L×W×H): 620mm × 620mm×140mm
  • Engrave materials: Wood boards, colorful paper cards, dark opaque acrylic, foam papers, etc.
  • Cutting materials: Colorful paper cards, foam papers, etc.
  • Working area (X×Y): 300mm×350mm
  • XY Resolution: 0.1mm
  • Max Speed: 50mm/s
  • Power: 100-240 V~50/60Hz AC/DC Power adapter, 12V/2.0A
  • Software:Benbox Laser Engraver
  • Supports file type: JPG,PNG,BMP,GIF,DXF
  • Connections: USB
  • Electronics: Makeblock Me_baseboard

Useful Links

  • Instruction of Laser Engraver Upgrade Pack
  • laser-engraver-upgrade-pack-for-xy-plotter-robot-kit-v2.0-qrcode.png

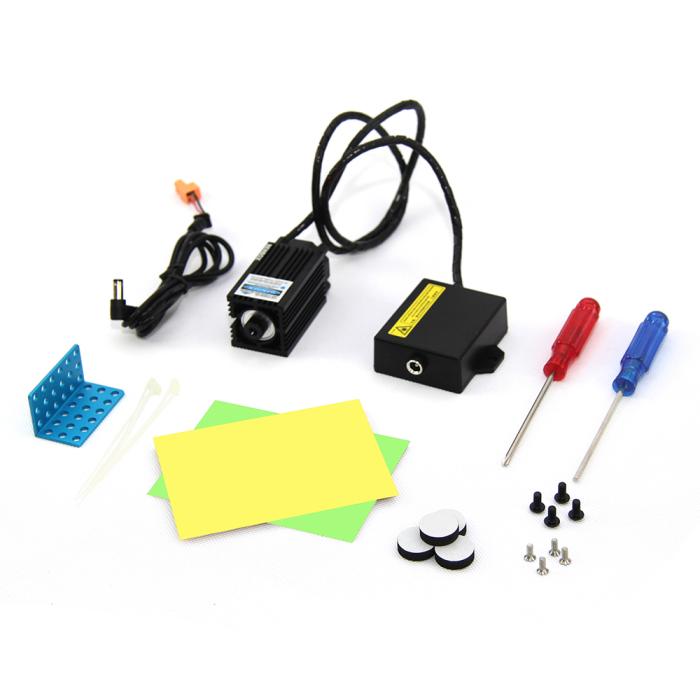

Parts List

  • 1 × Bracket 3x6
  • 1 × HEX Screwdriver 2.5mm
  • 1 × Cross Screwdriver 3mm
  • 4 × Socket Cap Screw M4x8-Botton Head
  • 4 × Countersunk Screw M3x8
  • 5 × Nylon Cable Ties
  • 1 × Motor Cable Jeck plug

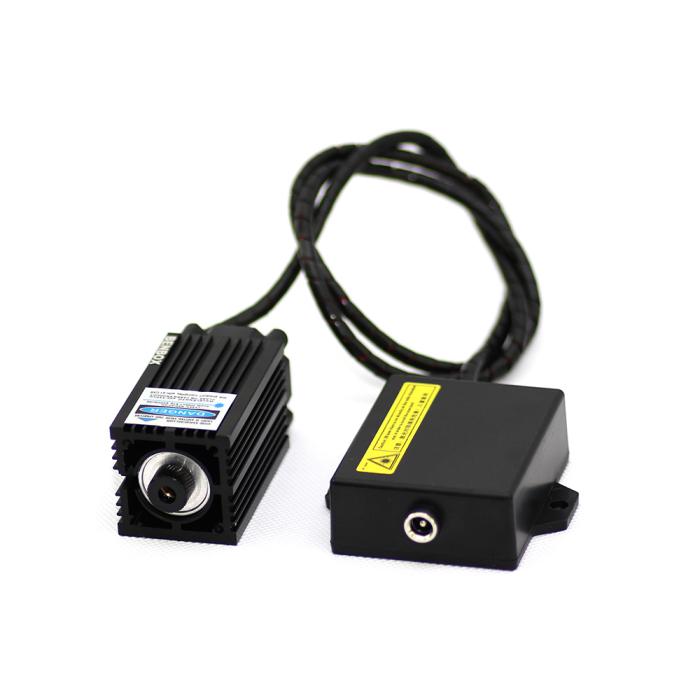

  • 1 × 450-500mW blue-violet Laser Components
  • 1 × DC power cord 5.5*2.1MM
  • 4 × Foot pads
