Prekės kodas: 2563
Kaina su PVM: € 199.65
Turime sandėlyje
Pirkti



Aprašymas

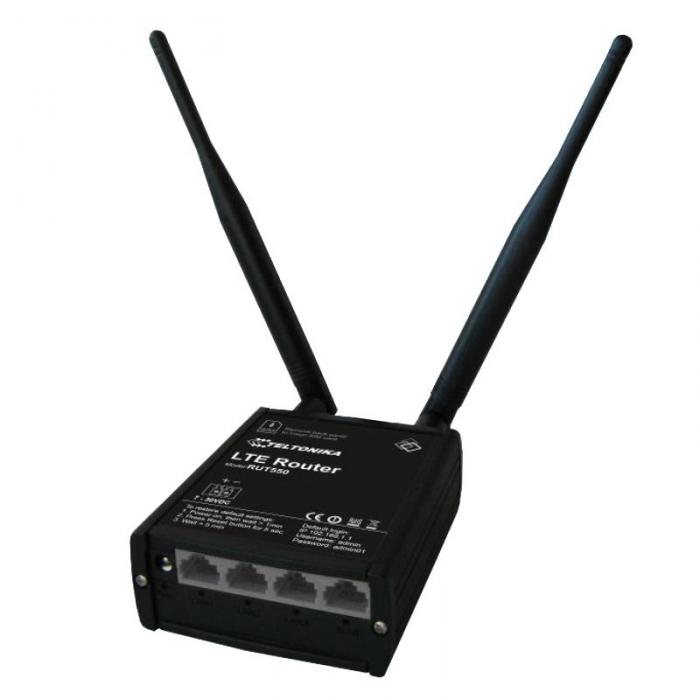

TELTONIKA RUT550 LTE 4G Wifi maršrutizatorius su integruotu modemu.

  • Kompaktiškas 4G/LTE ir 3G/UMTS maršrutizatorius su didelės spartos LTE ir DC-HSPA+.
  • Užtikrina stabilų ir nuolatinį interneto teikimą - praradus LAN interneto ryšį, perjungiamas mobilusis 4G/3G interneto ryšys ir atvirkščiai.
  • Papildomai RUT500 turi išorinę SMA antenos jungtį. Jei turite silpną 4G/3G ryšį, jį galite lengvai sustiprinti su papildoma 4G/3G antena.
  • Greitis LTE tinke: atsisiuntimo greitis iki 100 Mbps, išsiuntimo iki 50 Mbps.
  • Integruotas WiFi prieigos taškas, kuris palaiko naujausią IEEE802.11n ir IEEE802.11b / g WiFi standartą.
  • Integruotas 10/100 Mbps 3-lizdas Ethernet.

Techninė charakteristika:

  • LTE downlink of up to 100Mbps
  • LTE uplink of up to 50Mbps
  • DC-HSPA+ downlink of up to 42Mbps
  • DC-HSPA+ uplink of up to 5.76Mbps
  • Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b wireless standards
  • Complies with IEEE 802.3 and IEEE 802.3u standards
  • Four Ethernet ports (3 x LAN, 1 x WAN)
  • Durable aluminum housing
  • External antennas (for LTE and Wifi)
  • Integrated OpenVPN, IPSec and Dynamic DNS
  • LTE/3G backup WAN function
  • SMS reboot function
  • DIN rail mounting inlcuded with router
  • Wide input voltage range
  • Power over Ethernet (LAN and WAN) ports (not compliant with IEEE 802.3af-2003)

LTE/UMTS/GSM

GSM/GPRS/EDGE

  • 850/900/1800/1900 MHz
  • Power Class 4 (2 W, 33 dBm) GSM/GPRS 850/900 MHz
  • Power Class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 Mhz
  • Power Class E2 (0.5 W, 27 dBm) for EDGE 850/900 MHz
  • GPRS: 85.6 kbps DL/85.6 kbps UL (class 12)
  • EDGE: 236.8 kbps DL/236.8 kbps UL (class 12)

UMTS

  • 850/900/1900/2100 MHz
  • DC-HSPA+ mode: DL up to 43.2 Mbps, UL 5.76 Mbps
  • HSPA+ mode: DL up to 21.6 Mbps, UL 5.76 Mbps
  • UMTS mode: 384 kbps DL/384 kbps UL
  • All bands with diversity

LTE

  • FDD 800/850/900/1800/1900/2100/2600 MHz
  • Up to 100 Mbps downlink speed
  • Up to 50 Mbps uplink speed
  • All bands with diversity
  • 3dBi LTE/UMTS/GMS antenna

LAN and Wi-Fi

  • Wireless AP, Router, 4-Port Switch and Firewall in one device
  • High performance 320 MHz CPU with 256 Mbits SDRAM
  • IEEE 802.11b/g/n, IEEE 802.3, IEEE 802.3u standards
  • 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
  • 3x LAN 10/100Mbps Ethernet ports
  • 1x WAN 10/100Mbps Ethernet port
  • Supports Auto MDI/MDIX
  • Remote/local Web management
  • 1x 5dBi wireless antenna
  • SSID stealth mode and access control based over MAC address
  • System log to record the status of the Router
  • Auto negotiation/manual mode for IEEE 802.11b/g/n
  • Dynamic DNS
  • LAN access control over Internet connection
  • Virtual server
  • Auto wireless channel selection
  • OpenVPN
  • IPSec
  • PPPoE
  • Backup WAN
  • SMS and Ping reboot
  • Status via SMS
  • 4 x LAN status LEDs

Electrical, Mechanical & Environmental

  • Dimensions (H x W x D) 100mm x 85mm x 36mm
  • Weight 210g
  • Power supply 100 – 240 VAC -> 9 VDC wall adapter
  • Input voltage range 7 – 30VDC
  • Power consumption < 7W
  • Antenna connectors 2 x SMA for GSM/LTE, 1 x RP-SMA for Wi-Fi
  • Indicators 4 x Ethernet LEDs, 1 x Power LED, 1 x GSM LED
  • Operating temperature 0º to 50º C
  • Storage temperature -20º to 70º C
  • Operating humidity 10% to 90% Non-condensing
  • Storage humidity 5% to 95% Non-condensing
