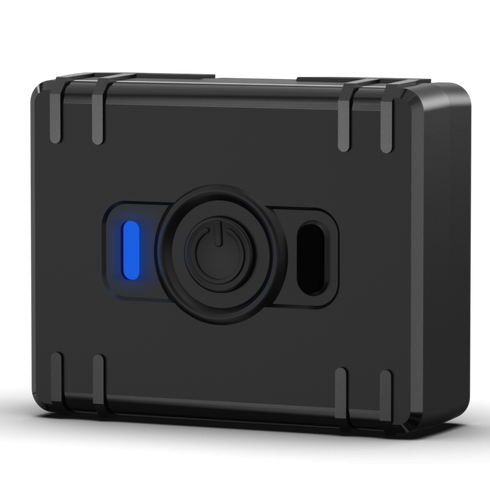

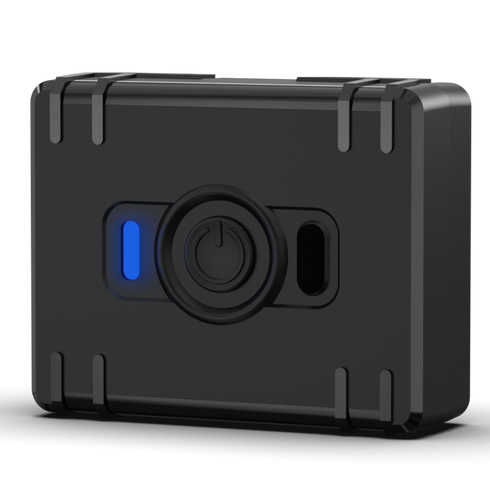

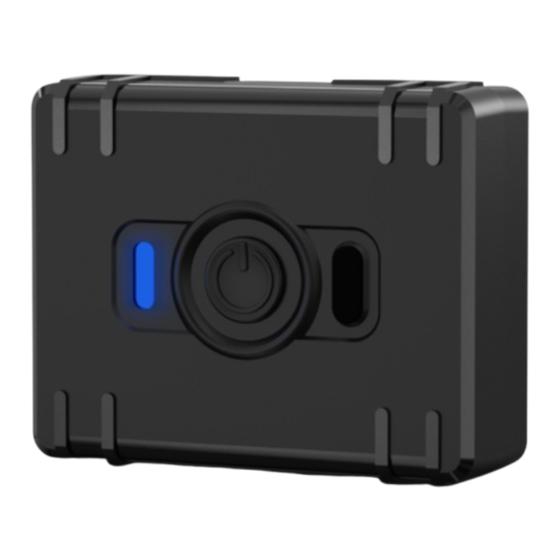

GPS seklys Teltonika ATC700-4G

The Teltonika ATC700 is a compact, rechargeable 4G LTE Cat 1 mini GPS tracker built for real-time monitoring of assets, vehicles, equipment, workforce and livestock. It packs multi-constellation GNSS, an internal rechargeable battery, a motion accelerometer and a configurable button into a small, tool-free, weather-resistant housing - so you can simply attach it, track it, recharge it and reuse it.

Unlike single-use trackers, the ATC700 runs standalone on its own battery and can also be powered from a power bank for extended deployments. It works with the Teltonika platform as well as with simple SMS/GPRS commands, keeping running costs low.

Why choose the ATC700

• Truly portable - no wiring needed; mount it with a zip tie, double-sided tape, a magnet or a cord
• Rechargeable - 1000 mAh Li-Po battery over USB Type-C; no disposable batteries
• Accurate everywhere - GPS + GLONASS + Galileo + BeiDou for a reliable fix in the city or the field
• Long runtime - intelligent sleep modes stretch operation from days to weeks between charges
• Rugged - water- and dust-resistant enclosure for demanding outdoor conditions
• Flexible alerts - configurable button for start/stop tracking, panic / SOS or interval switching
• Future-proof - remote firmware updates (FOTA), so the device improves over time

Key features

• 4G LTE Cat 1 connectivity with automatic 2G/GPRS fallback for coverage where LTE is unavailable
• Multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou), -165 dBm tracking sensitivity, position accuracy below 1.8 m CEP, hot start under 1 s
• 1000 mAh rechargeable Li-Po battery (3.7 V / 3.7 Wh), charged via USB Type-C, with power-bank support
• Smart power management - Online Deep Sleep and Power Off Sleep modes (consumption from just 0.11 mA in Power Off Sleep)
• Built-in accelerometer for movement-based tracking, periodic tracking, scheduler and alarm-button scenarios
• Geofencing (including time-zone geofencing) and on-demand tracking
• Configurable RGB status LED and a multi-function button
• Remote management via Teltonika Configurator (TCT) and FOTA Web

Find it by SMS

Need a quick location check without opening an app? Text the command ggps to the tracker's phone number and it replies with the current date, time, speed and a clickable Google Maps link to its exact position.

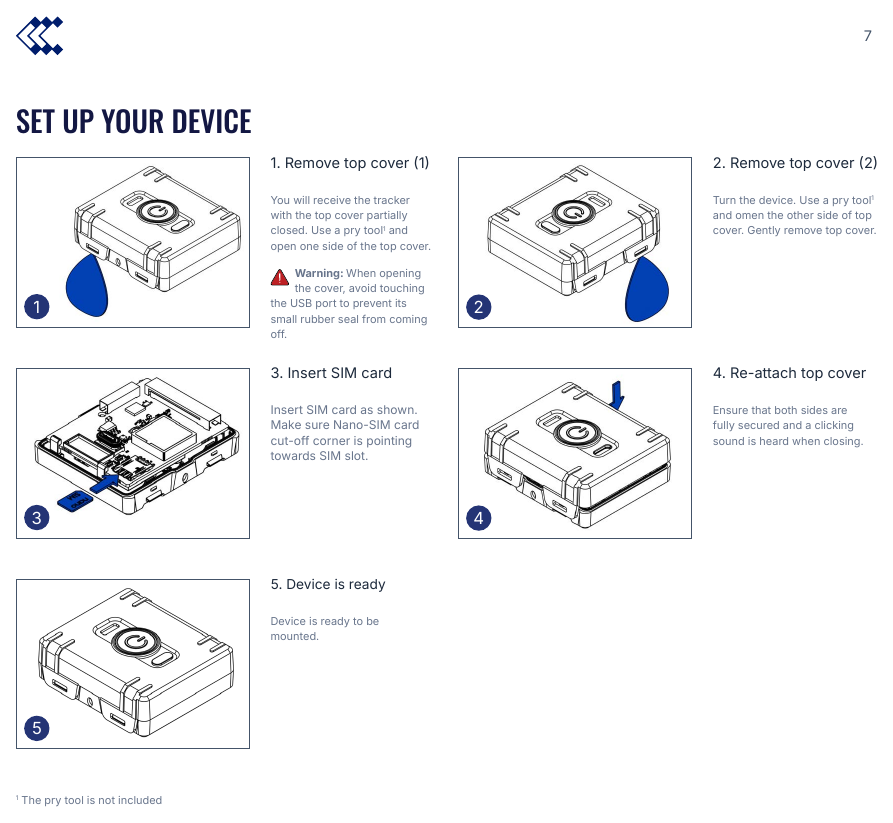

Setting up the device

Getting started takes under a minute - open the cover, insert a Nano-SIM, close it, and the tracker is ready to mount.

1. Remove the top cover - the tracker ships with the cover partially closed; gently open both sides with a pry tool (avoid touching the USB port so the small rubber seal stays in place).
2. Insert the Nano-SIM - the cut-off corner points towards the SIM slot. Insert the SIM only while the battery connector is unplugged (no power).
3. Re-attach the cover - make sure both sides are fully secured; you should hear a click.
4. Ready - the device is ready to be mounted.

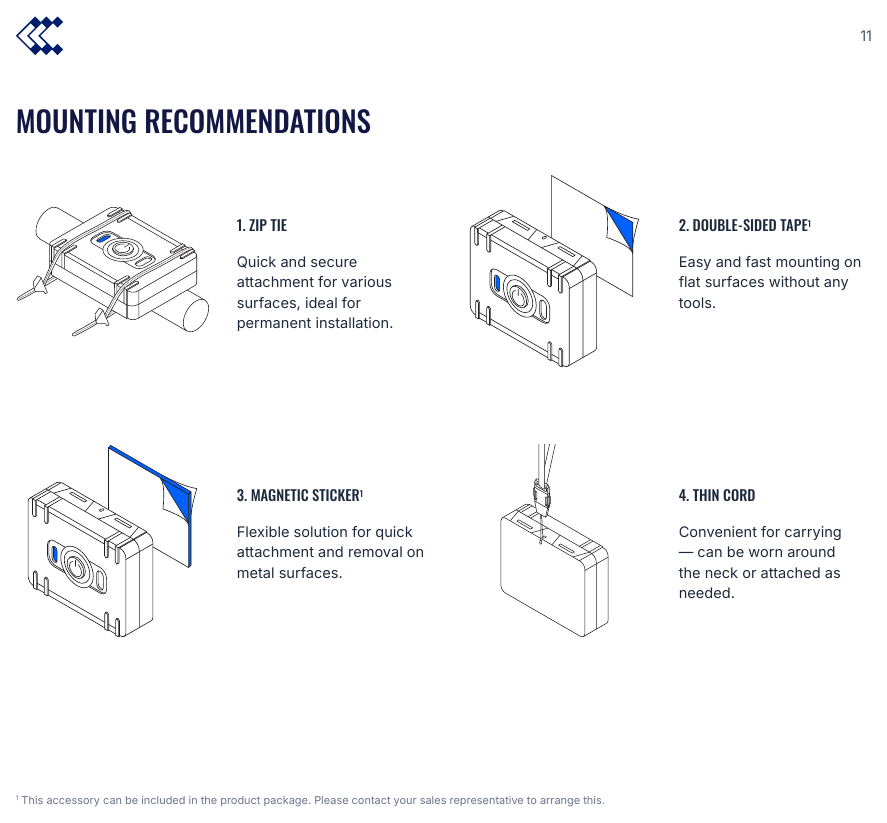

Mounting recommendations

Choose the mounting method that fits your use case:

• Zip tie - quick, secure attachment to many surfaces; ideal for permanent installation
• Double-sided tape - easy, fast mounting on flat surfaces without tools
• Magnetic sticker - flexible attach/remove on metal surfaces
• Thin cord - wearable; carry around the neck or attach as needed

LED indications (at a glance)

State	LED
Power on	Green, steady 3 s
Charging	Yellow, slow pulse
Fully charged	Green, steady (until USB unplugged)
Record sent with GNSS fix	Blue, steady 3 s
Record sent without fix	Yellow, steady 3 s
Sending failed	Red, steady 3 s
Low battery	Red, 1 s on / 1 s off
Normal operation (idle)	Blue, brief blink once per minute

Technical specifications

Parameter	Value
Technology	LTE Cat 1 / GSM / GPRS / GNSS
Module	Quectel EG915U (EU: QJAE0 / LA: QKAE0) with AG3335 GNSS
4G LTE bands (EU, QJAE0)	B1, B3, B5, B7, B8, B20, B28
4G LTE bands (LA, QKAE0)	B2, B3, B4, B5, B7, B8, B28, B66
2G bands	B2, B3, B5, B8
Data rates	LTE: up to 10/5 Mbps (DL/UL); GPRS: up to 85.6 Kbps
GNSS	GPS, GLONASS, Galileo, BeiDou; -165 dBm; below 1.8 m CEP; hot start under 1 s
Battery	1000 mAh Li-Po, 3.7 V (3.7 Wh), rechargeable
Power consumption	0.11 mA (Power Off Sleep) - 10.8 mA (Online Deep Sleep) - 74 mA (active)
Interfaces	USB Type-C 2.0, Nano-SIM
Sensors	Accelerometer
Memory	128 MB internal flash
Dimensions / weight	62.2 x 54.2 x 20.33 mm / 71 g
Operating temperature	-20 C to +60 C (charging 0 C to +45 C)
Ingress protection	IP65 (internally tested); IP68 in development
Indicators	1 RGB status LED
Certification	CE RED, UKCA, E-Mark (RCM in progress)

The full datasheet and quick manual are available in the Parsisiuntimui (downloads) section below.
