GPS seklys Teltonika FMC130 4G

The Teltonika FMC130 is a professional 4G LTE Cat 1 vehicle tracking terminal from Teltonika's advanced range, with fallback to 3G and 2G, multi-constellation GNSS, Bluetooth and a generous set of configurable inputs/outputs. It is hard-wired into the vehicle through a 2x6 (12-pin) socket and is built for serious fleet work: connect ignition sensing, an immobiliser relay, fuel-level (LLS) and temperature sensors, an iButton reader, a buzzer or status LEDs - and add a CAN adapter to read data straight from the vehicle bus on cars, trucks and special machinery.

With a built-in accelerometer (crash, towing and Green Driving scenarios), a 170 mAh internal backup battery and 128 MB of memory that buffers records out of coverage, the FMC130 suits fleet management, car rental and leasing, taxi, public transport and logistics.

Why choose the FMC130

• Advanced, flexible I/O - 3 digital inputs, 3 digital outputs, 2 analog inputs, 1-Wire and a CAN-adapter input for rich vehicle integration (see the wiring scheme below)
• True 4G - LTE Cat 1 with automatic 3G and 2G fallback
• CAN data via adapter - read fuel, mileage and other bus data on compatible vehicles
• Driver behaviour & safety - accelerometer with crash detection, towing detection, Green Driving and over-speeding
• Bluetooth 4.0 LE - temperature/humidity sensors, OBDII dongle, iButton, barcode scanner and other BLE accessories
• 1-Wire - iButton authorisation and temperature sensors
• Internal backup battery - keeps reporting briefly after a power cut; 128 MB buffers data out of coverage
• Remote management - firmware and settings over the air (FOTA), plus USB / Bluetooth configuration
• Note: the FMC130 is IP41 (basic dust/drip protection) - designed for protected in-vehicle installation, not for exposed or wet mounting

Key features

• 4G LTE Cat 1 (Quectel EC21) with 3G (UMTS/HSPA) and 2G (GSM/GPRS) fallback
• Multi-constellation GNSS - GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS; 33-channel; -165 dBm; accuracy below 3 m
• Inputs / outputs: 3 digital inputs, 3 digital outputs (open collector, max 0.5 A), 2 analog inputs (0-30 V), 1 negative input, 2 impulse inputs, 1 CAN-adapter input, 1-Wire
• 170 mAh Li-Ion internal backup battery; input 10-30 V DC with overvoltage protection
• Bluetooth 4.0 + LE
• Accelerometer; scenarios: Crash & Towing detection, Green Driving, Over-Speeding, Jamming / Unplug detection, Immobilizer, iButton, Excessive Idling, Geofencing, Trip, GNSS Fuel Counter
• 128 MB internal memory; Micro-SIM + eSIM; Micro-USB 2.0; 2 status LEDs
• FOTA Web management; Teltonika Configurator (USB / Bluetooth) and FMBT mobile app

Find it by SMS

Need a quick location check without opening an app? Text the command ggps to the tracker's phone number and it replies with the current date, time, speed and a clickable Google Maps link to the vehicle's position.

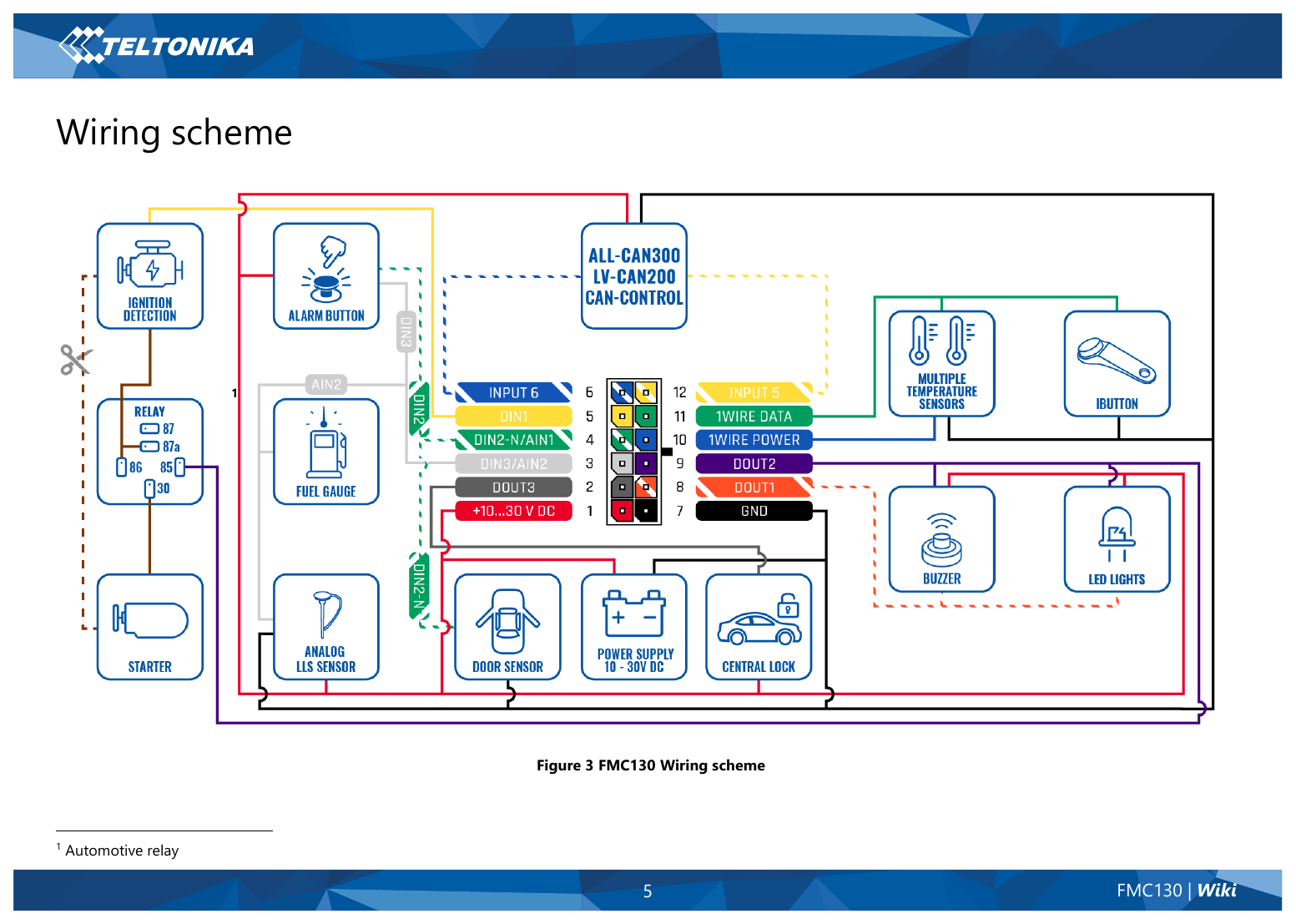

Inputs / outputs and wiring

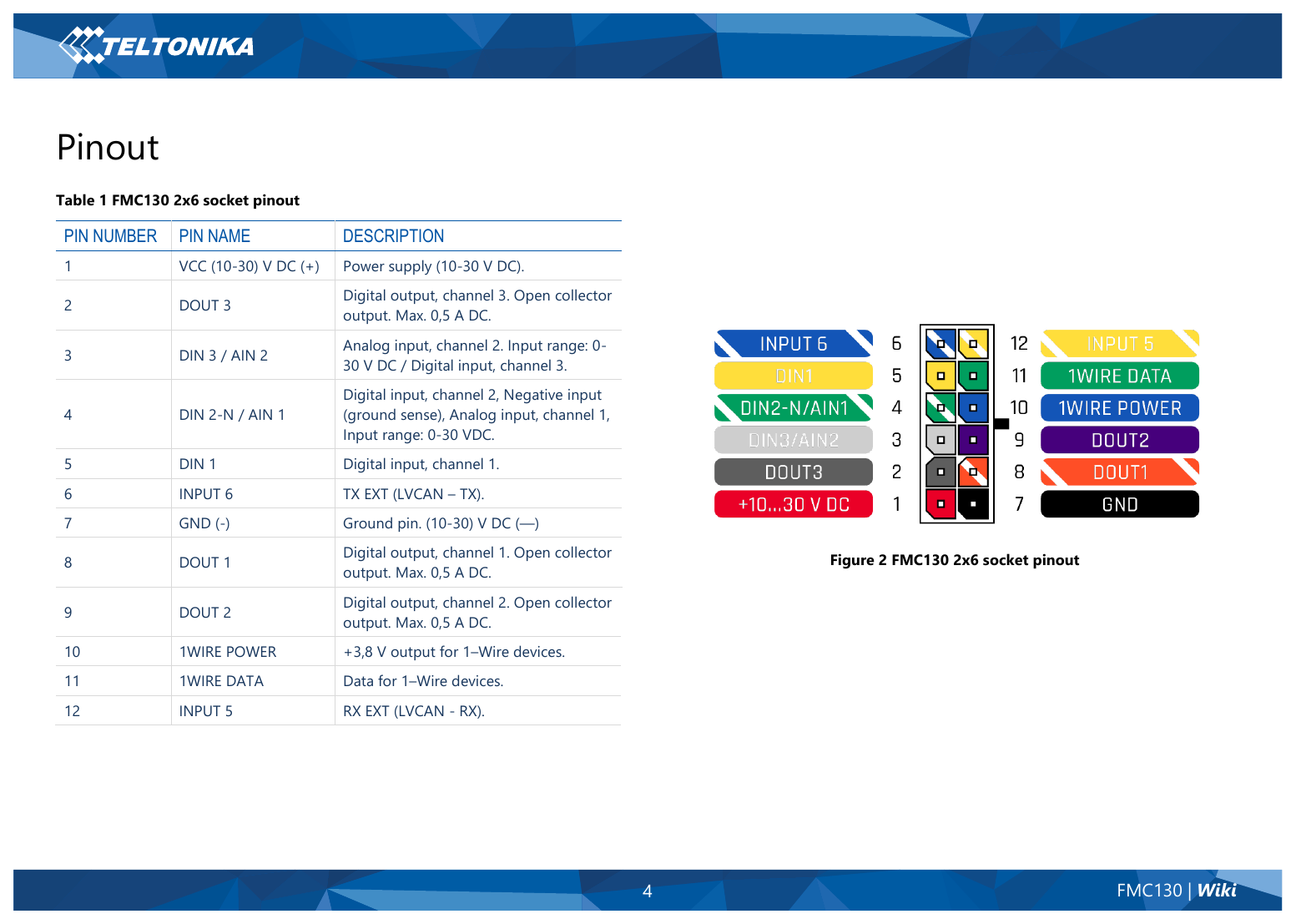

The 2x6 socket carries power plus the configurable I/O - connect ignition detection, an immobiliser relay, sensors, a buzzer, LEDs, a 1-Wire iButton/temperature sensor or a CAN adapter:

Installation

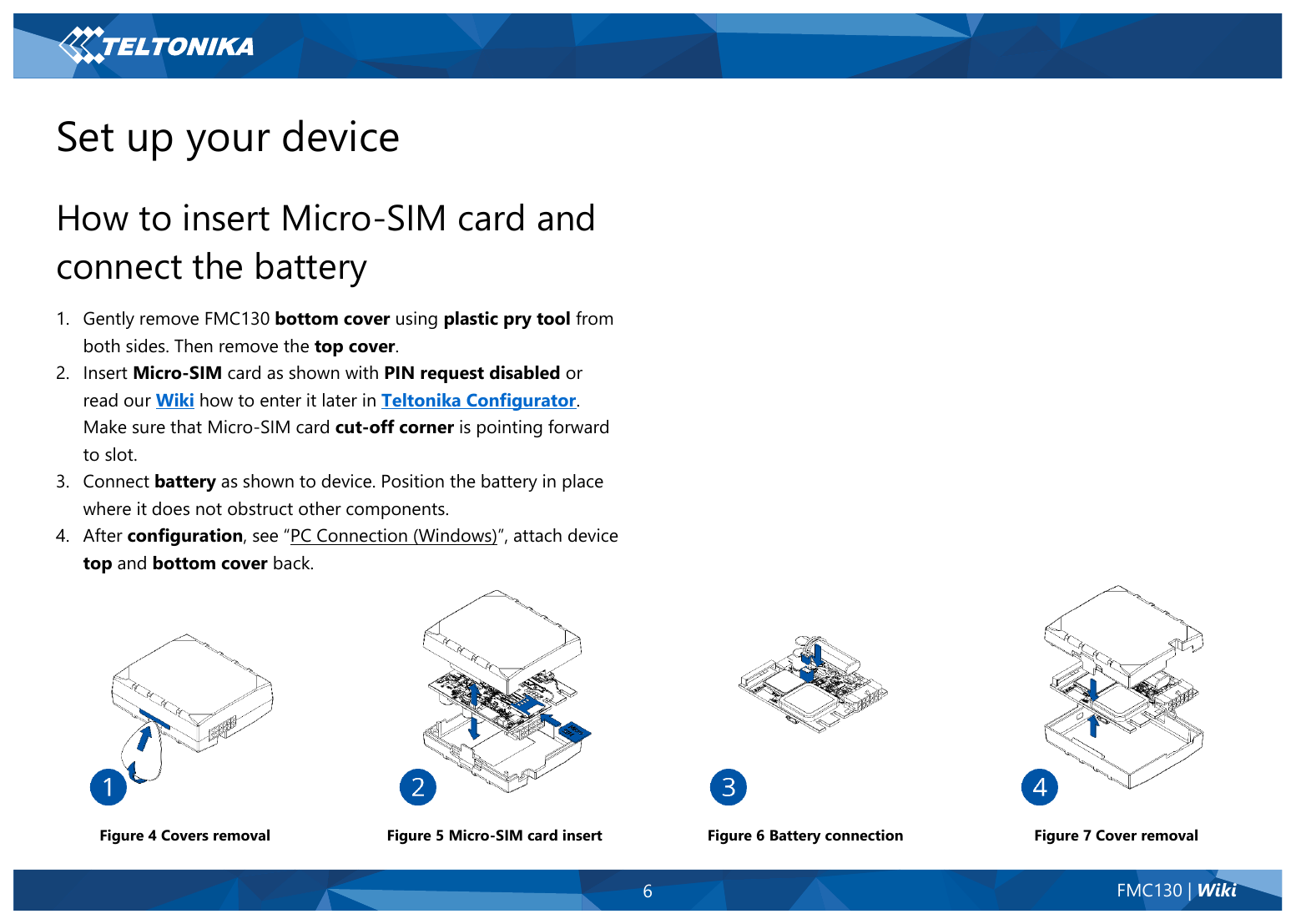

Insert the Micro-SIM and connect the battery, then wire the device to the vehicle:

1. Open the cover, insert the Micro-SIM (PIN request disabled) and connect the internal battery.
2. Wire the 2x6 socket: Pin 1 +10-30 V DC, Pin 7 ground; connect the digital/analog I/O, 1-Wire or CAN-adapter pins as your installation needs.
3. Mount the device in a protected spot away from heat and moisture; configure via Teltonika Configurator (USB / Bluetooth) or FOTA.

Technical specifications

The full datasheet and quick manual are available in the Parsisiuntimui (downloads) section below.
