GPS seklys Teltonika FMC150 4G

The Teltonika FMC150 is a professional 4G LTE Cat 1 vehicle tracker with a built-in CAN data processor - a compact "2 in 1" unit that combines a GNSS/LTE tracker and a CAN adapter in one housing. It reads live vehicle data straight from the CAN bus of light vehicles, electric vehicles, trucks and buses: fuel level and total fuel consumption, engine RPM, wheel-based speed, driven distance and accelerator pedal position - no external CAN adapter needed.

Hard-wired through a 2x6 (12-pin) socket, it offers configurable digital/analog inputs and outputs, 1-Wire (iButton / temperature sensors), Bluetooth LE for wireless sensors, a 170 mAh backup battery and 128 MB of memory that buffers records out of coverage. The FMC150 is the natural choice for fleet management, logistics, delivery services, utility transport, car sharing and rental fleets that need real vehicle data - not just a position on a map.

Why choose the FMC150

• CAN data without an extra adapter - the CAN processor is inside; two CAN interfaces read the vehicle bus directly
• Real fuel data - fuel level and total consumption from the vehicle, plus the GNSS Fuel Counter scenario
• EV ready - CAN data reading from a wide range of electric vehicles, alongside light vehicles, trucks and buses
• True 4G - LTE Cat 1 with automatic 2G (GSM/GPRS) fallback
• Driver behaviour & safety - accelerometer with crash detection, towing detection, Green Driving, over-speeding and excessive-idling scenarios
• Bluetooth 4.0 LE - temperature/humidity sensors, barcode scanner and other BLE accessories
• 1-Wire - iButton driver authorisation and temperature sensors
• Internal backup battery - keeps reporting briefly after a power cut or unplugging; 128 MB buffers data out of coverage
• Remote management - firmware and settings over the air (FOTA Web), plus USB / Bluetooth configuration
• Note: the FMC150 is IP41 (basic dust/drip protection) - designed for protected in-vehicle installation, not for exposed or wet mounting

Key features

• 4G LTE Cat 1 (Quectel EG915U-EU) with 2G (GSM/GPRS) fallback; no 3G
• Integrated CAN data processor with 2 CAN interfaces; supported vehicle types: light vehicles, electric vehicles, trucks and buses
• CAN data: fuel level (dashboard), total fuel consumption, vehicle speed (wheel), driven distance, engine speed (RPM), accelerator pedal position
• Multi-constellation GNSS - GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS; 33 tracking channels; -165 dBm; accuracy below 2.5 m CEP
• Inputs / outputs (EU variant): 3 digital inputs (1 with ground sense, 2 impulse-capable), 2 digital outputs (open collector), 2 analog inputs (0-30 V), 1-Wire
• 170 mAh Li-Ion internal backup battery; input 10-30 V DC with overvoltage protection; 3 A internal fuse
• Bluetooth 4.0 + LE
• Accelerometer; scenarios: Crash & Towing detection, Green Driving, Over-Speeding, Jamming / Unplug detection, Immobilizer, iButton read notification, Excessive Idling, DOUT control via call, Auto / Manual Geofence, Trip, GNSS Fuel Counter
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep (below 6 mA at 12 V)
• 128 MB internal memory; Micro-SIM + eSIM; Micro-USB 2.0; 3 status LEDs (navigation, status, CAN)
• FOTA Web management; Teltonika Configurator (USB / Bluetooth) and FMBT mobile app

Find it by SMS

Need a quick location check without opening an app? Text the command ggps to the tracker's phone number and it replies with the current date, time, speed and a clickable Google Maps link to the vehicle's position.

Inputs / outputs and wiring

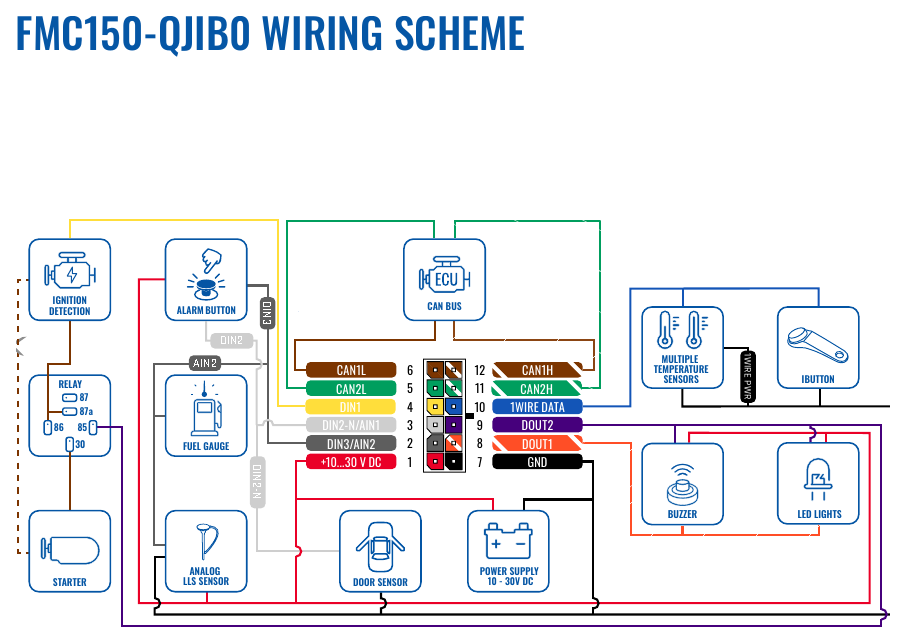

The 2x6 socket carries power, the two CAN lines and the configurable I/O - connect the vehicle CAN bus, ignition detection, an immobiliser relay, a fuel gauge or LLS sensor, an alarm button, a buzzer, LEDs, or a 1-Wire iButton / temperature sensor:

Installation

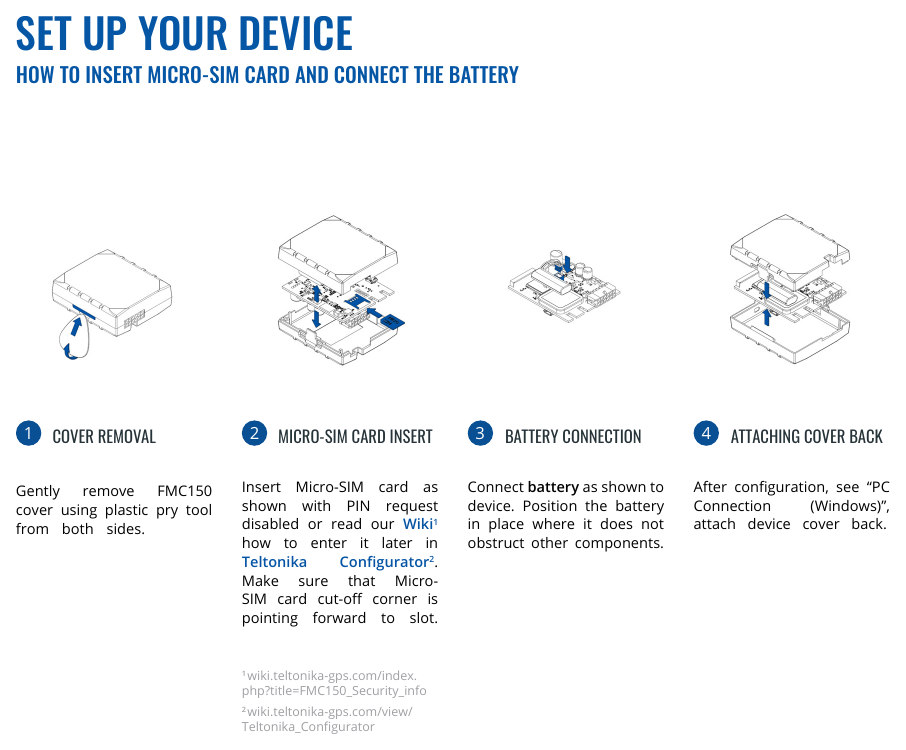

Insert the Micro-SIM and connect the battery, then wire the device to the vehicle:

1. Open the cover, insert the Micro-SIM (PIN request disabled) and connect the internal battery.

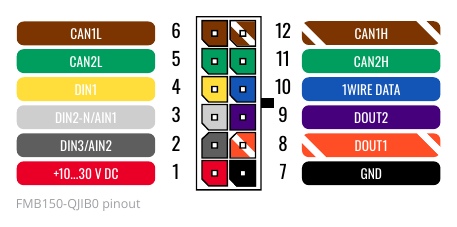

2. Wire the 2x6 socket: Pin 1 +10-30 V DC, Pin 7 ground; connect CAN1 (pins 6/12) and, if needed, CAN2 (pins 5/11) to the vehicle bus, plus the digital/analog I/O or 1-Wire pins your installation needs.
3. Mount the device in a protected spot away from heat and moisture; configure via Teltonika Configurator (USB / Bluetooth) or FOTA Web.

LED indications

LED	Behaviour	Meaning
Navigation	Blinking every second	Normal mode, GNSS is working
Navigation	Permanently on	GNSS signal is not received
Navigation	Off	GNSS is off: device not working or in sleep mode
Status	Blinking every second	Normal mode
Status	Blinking every two seconds	Sleep mode
Status	Blinking fast for a short time	Modem activity
CAN	Blinking fast constantly	Reading CAN data from the vehicle
CAN	Permanently on	Wrong program number or wrong wire connection
CAN	Off	Wrong connection, or CAN processor in sleep mode

Technical specifications

Parameter	Value
Module	Quectel EG915U-EU with Teltonika TM2500 (FMC150-QJIB0, EU variant)
Technology	LTE Cat 1 / 2G GSM-GPRS / GNSS / Bluetooth LE
4G LTE bands (EU)	FDD B1, B3, B7, B8, B20, B28
2G bands	GSM B2, B3, B5, B8
Data rate	LTE up to 10 Mbps DL / 5 Mbps UL; GPRS up to 85.6 kbps
GNSS	GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS; 33 tracking / 99 acquisition channels; -165 dBm; below 2.5 m CEP
Start time	hot below 1 s / warm below 25 s / cold below 35 s
CAN interfaces	2 (integrated CAN data processor)
CAN data	Fuel level (dashboard), total fuel consumption, vehicle speed (wheel), driven distance, engine RPM, accelerator pedal position
Backup battery	170 mAh Li-Ion, 3.7 V (0.63 Wh)
Power input	10-30 V DC, overvoltage protection; internal fuse 3 A
Power consumption (12 V)	below 35 mA nominal; below 6 mA Ultra Deep Sleep; below 250 mA peak
Inputs / outputs (EU variant)	3 digital in (1 negative, 2 impulse), 2 digital out (open collector, 0.5 A), 2 analog in (0-30 V), 1-Wire
Bluetooth	4.0 + LE
Sensors	Accelerometer
Memory	128 MB internal flash
Dimensions / weight	65 x 56.6 x 20.6 mm / 55 g
SIM / USB	Micro-SIM + eSIM / Micro-USB 2.0
Connector	2x6 socket (12-pin), hard-wired
Indicators	3 status LEDs (navigation, status, CAN)
Operating temperature	-40 C to +85 C (without battery); -20 C to +40 C (with battery)
Ingress protection	IP41 (basic dust/drip protection - not waterproof)

The full datasheet and quick manual are available in the Parsisiuntimui (downloads) section below.
