GPS seklys Teltonika FMC880 4G

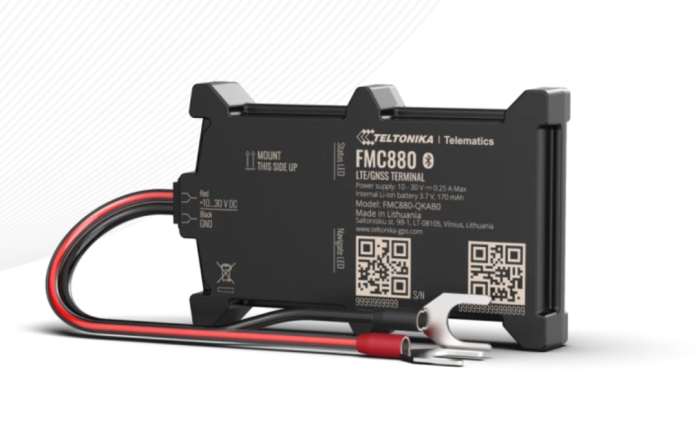

The Teltonika FMC880 is a compact, waterproof 4G LTE Cat 1 vehicle GPS tracker with a dual-band L1 + L5 GNSS receiver for superior positioning accuracy. Like the rest of Teltonika's easy-install range it connects directly to the car battery with a clamp ("U-type") cable, so a typical fit takes only a few minutes - no OBD port, no engineer. Its rugged IP65 housing suits discreet under-bonnet mounting, and a built-in accelerometer adds accurate crash detection. Ideal for light vehicles, motorcycles, courier/delivery fleets, rental & leasing and insurance telematics.

It runs on vehicle power (10-30 V DC) and keeps reporting briefly on its internal backup battery if power is cut. Out of coverage, records are buffered in internal memory and uploaded once the connection returns - so no part of the route is lost.

Why choose the FMC880

• Best-in-class accuracy - dual-band L1 + L5 GNSS (GPS, GLONASS, Galileo, BeiDou) delivers below 1.5 m accuracy and a fast first fix, even among tall buildings
• True 4G - LTE Cat 1 connectivity with automatic 2G fallback
• Fast install - clamps straight onto the battery (red +, black -); ready in minutes
• Hidden and weatherproof - small IP65 case fits discreetly under the hood
• Crash detection - built-in accelerometer records an accurate crash trace
• No lost data - 128 MB internal memory buffers records out of coverage; 170 mAh backup battery keeps reporting briefly after power loss
• Expandable over Bluetooth 4.0 LE - add temperature / humidity sensors, beacons, an OBDII dongle and more
• Smart driving scenarios - Green Driving, over-speeding, idling, towing, unplug and jamming detection, geofencing
• Remote management - firmware and settings over the air (FOTA), plus USB / Bluetooth configuration

Key features

• 4G LTE Cat 1 (Quectel EG915U + AG3335) with 2G GSM/GPRS fallback
• Dual-band L1 + L5 multi-constellation GNSS - GPS, GLONASS, Galileo, BeiDou; -165 dBm; accuracy below 1.5 m CEP; hot start under 1 s
• Direct-to-battery power (10-30 V DC, overvoltage protection) with a 170 mAh Li-Ion backup battery
• Accelerometer with crash trace
• Bluetooth 4.0 + LE for wireless sensors and accessories
• IP65 waterproof enclosure; wide -40 C to +85 C operating range
• 128 MB internal memory for offline record buffering
• Driving scenarios: Green Driving, Over-Speeding, Idling, Towing, Unplug, Jamming detection, Geofencing, Trip
• FOTA Web management; configurable via Teltonika Configurator (USB / Bluetooth)

Find it by SMS

Need a quick location check without opening an app? Text the command ggps to the tracker's phone number and it replies with the current date, time, speed and a clickable Google Maps link to the vehicle's position.

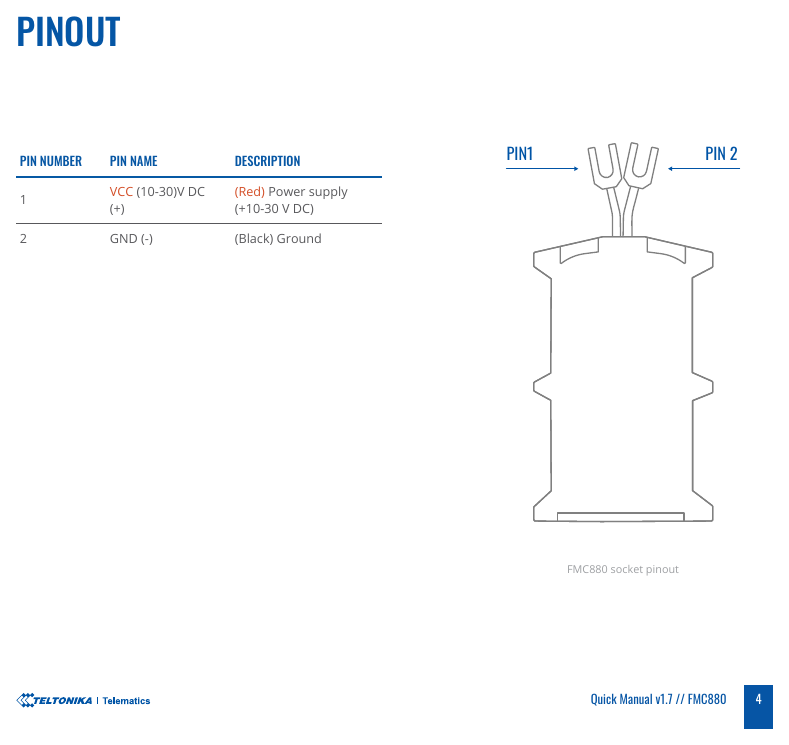

Wiring

The FMC880 uses a simple two-wire connection to the vehicle battery:

• VCC (red): power supply, +10-30 V DC
• GND (black): ground

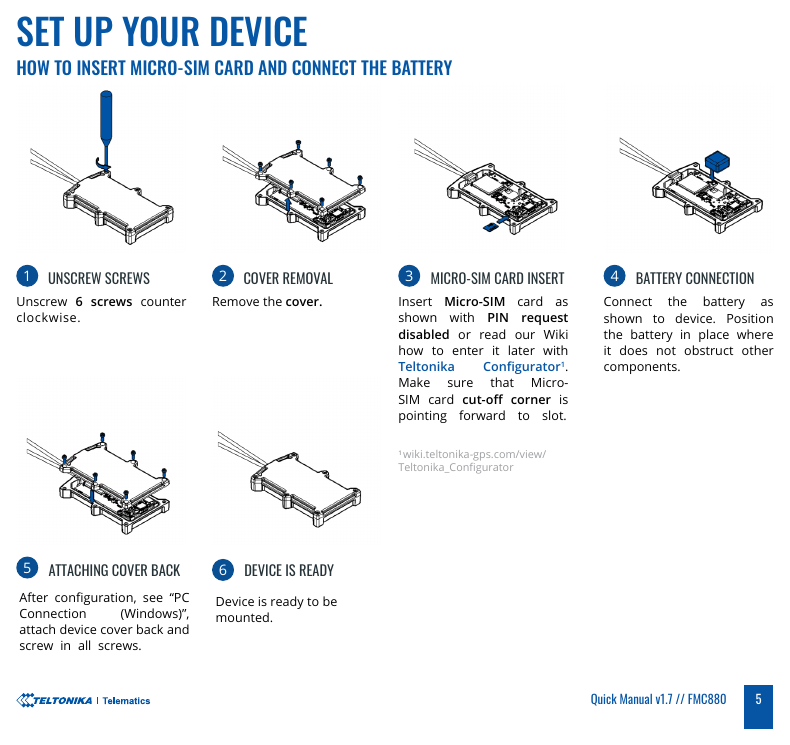

Installation

Insert the Micro-SIM and connect the device to the battery, then mount it where it does not obstruct other components:

1. Unscrew the 6 screws (counter-clockwise) and remove the cover.
2. Insert the Micro-SIM (PIN request disabled), cut-off corner pointing toward the slot.
3. Connect the battery / power as shown, positioning the cable so it does not obstruct other components.
4. Re-attach the cover and screw it back in - the device is ready to be mounted.

Technical specifications

The full datasheet and quick manual are available in the Parsisiuntimui (downloads) section below.
