GPS seklys Teltonika FMT100 2G

The Teltonika FMT100 is a compact, waterproof 2G GNSS vehicle tracker built for fast, tool-light installation. It connects directly to the car battery with a clamp connector and pre-crimped cable, and its high-gain internal antenna is designed to work even mounted under the hood - so a typical install takes only a few minutes. With a built-in accelerometer and gyroscope for insurance-grade crash detection and a rugged IP65 housing, it suits light vehicles, taxi and courier fleets, rental/leasing and usage-based-insurance telematics.

It is powered from the vehicle (10-30 V DC) and keeps reporting briefly on its internal backup battery if power is cut. Out of coverage, records are buffered in internal memory and uploaded once the connection returns - so no part of the route is lost.

Why choose the FMT100

• Fast install - connects straight to the battery (red +, black -); ready in minutes, no complex wiring
• Hidden and weatherproof - small IP65 case fits discreetly under the hood
• Accurate positioning - multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) with accuracy below 3 m
• Insurance-grade crash detection - accelerometer and gyroscope record an accurate crash trace
• No lost data - 128 MB internal memory buffers records out of coverage; the 170 mAh backup battery keeps reporting briefly after power loss
• Smart driving scenarios - Green Driving, over-speeding, idling, towing, unplug and jamming detection, geofencing
• Expandable over Bluetooth 4.0 LE - add temperature / humidity sensors, an OBDII dongle and more
• Remote management - firmware and settings over the air (FOTA), plus USB / Bluetooth configuration

Key features

• 2G GSM / GPRS connectivity, quad-band 850 / 900 / 1800 / 1900 MHz (GPRS class 12)
• Multi-constellation GNSS - GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS; -165 dBm sensitivity; accuracy below 3 m; hot start under 1 s
• Direct-to-battery power (10-30 V DC) with overvoltage protection and a 170 mAh Li-Ion backup battery
• Accelerometer + gyroscope with high-accuracy crash trace
• Bluetooth 4.0 + LE for wireless sensors and accessories
• IP65 waterproof enclosure; wide -40 C to +85 C operating range
• 128 MB internal memory for offline record buffering
• Driving scenarios: Green Driving, Over-Speeding, Excessive Idling, Towing, Unplug, Jamming and Crash detection, Geofencing, Trip
• FOTA Web management; configurable via Teltonika Configurator (USB) or the mobile app

Find it by SMS

Need a quick location check without opening an app? Text the command ggps to the tracker's phone number and it replies with the current date, time, speed and a clickable Google Maps link to the vehicle's position.

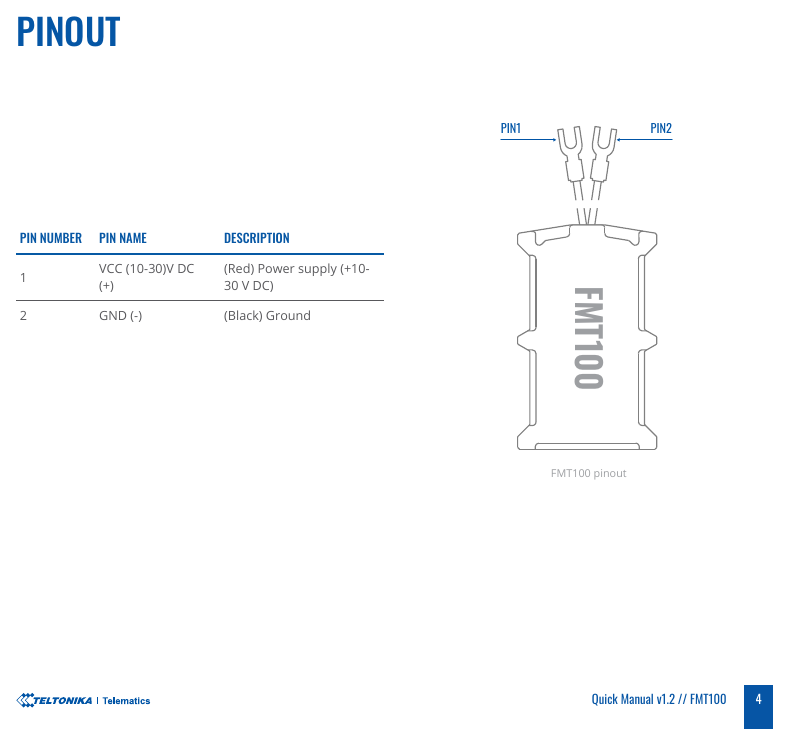

Wiring

The FMT100 uses a simple two-wire connection to the vehicle battery:

• PIN 1 - VCC (red): power supply, +10-30 V DC
• PIN 2 - GND (black): ground

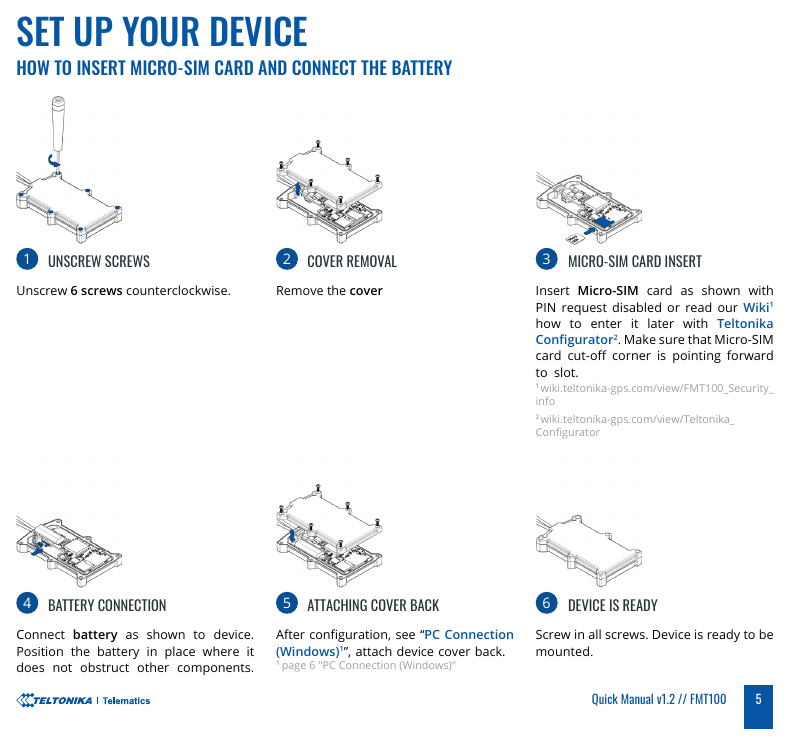

Installation

Insert the Micro-SIM and connect the device to the battery, then mount it where it does not obstruct other components:

1. Unscrew the 6 screws (counter-clockwise) and remove the cover.
2. Insert the Micro-SIM (PIN request disabled), cut-off corner pointing toward the slot.
3. Connect the battery / power as shown, positioning the cable so it does not obstruct other components.
4. Re-attach the cover and screw it back in - the device is ready to be mounted.

Technical specifications

The full datasheet and quick start guide are available in the Parsisiuntimui (downloads) section below.
