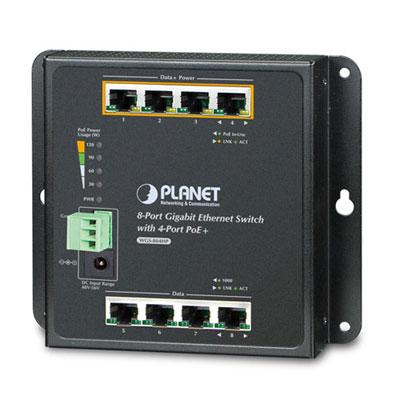

PoE šakotuvas 4 portų(viso 8port.),1000M

Prekės kodas: 2314
Kaina su PVM: € 295.38
Turime sandėlyje
Pirkti



Aprašymas

Features:

• Complies with IEEE 802.3at High Power over Ethernet end-span PSE
• Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
• Up to 4 ports of IEEE 802.3af / 802.3at devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 9K Jumbo frame supports in 1000Mbps duplex mode
• Automatic address learning and address aging
• Compact size, wall-mounted, magnetic wall mount and DIN-rail design
• IP30 metal chassis
• Supports -10 to 60 degrees C operating temperature
• Supports EFT 6000VDC protection for power line
• Supports ESD 6000VDC Ethernet protection
• LED indicators for real-time PoE usage
• 48V~56V DC input range for booting with polarity reverse protect function

Technical Specifications:

• Network Connector: 8-Port RJ45 for 10/100/1000BASE-T
• PoE Inject Port: 4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4)
• Switch Architecture: Store and forward
• MAC Address Table: 8K MAC address table with auto learning function
• Data Buffer: 1Mbit
• Switch Fabric: 16Gbps / non-blocking
• Switch Throughput: 11.9Mpps@64Bytes
• Jumbo Frame: 9Kbytes
• Flow Control: IEEE 802.3x pause frame for full duplex
• Back pressure for half duplex
• LED Indicators: Power LED: Power (Green), PoE Power Usage LED: 30W, 60W, 90W, 120W (Green), PoE Port(Port-1 to Port-4): PoE-in-Use (Orange), LNK/ACT (Green), 10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green),LNK/ACT (Green)
• Connector: Removable 3-pin terminal block for power input - Pin 1/2 for DC Power- Pin 3 for earth ground, DC power jack with 2.0mm central pole
• Power Requirements: 48~56V DC, 3A (max.)
• Power Consumption: 140 watts / 478BTU
• ESD Protection: 6KV DC
• EFT Protection: 6KV DC
• Enclosure: IP30 metal
• Dimensions: (W x D x H): 148 x 134 x 25 mm
• Weight 510g
• Installation: Wall mount, magnetic wall mount and DIN-rail kit
