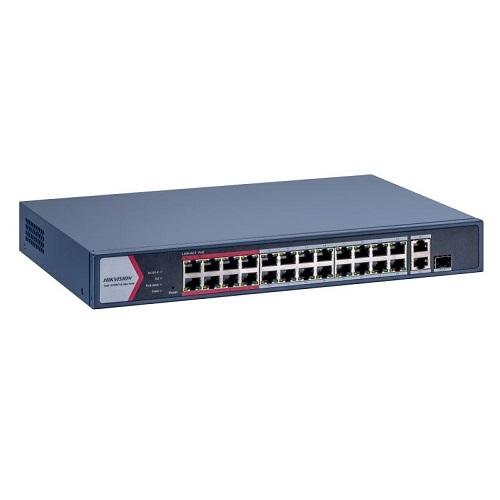

PoE šakotuvas Hikvision DS-3E1326P-EI/M

26 prievadų 24 PoE prievadų komutatorius
Modelis: DS-3E1326P-EI/M
24 × 10/100Mbps PoE prievadai, 1 × gigabit combo, 1 × gigabit RJ45 prievadas
IEEE 802.3at/af standartai PoE priedams (Maks. 230 W PoE išėjimas).
Palaiko 802.1Q VLAN
Palaiko PoE watchdog, kad aptiktų ir iš naujo paleistų nereaguojančias kameras
Palaiko STP/RSTP kilpų prevenciją
6 KV iškrovos apsauga
Iki 300 m. perdavimas.
Palaiko kabelio aptikimą gedimui nustatyti
Metalinis korpusas

Aprašymas:

Tinklo parametrai
• Prievadai: 24 x 10/100 Mbps PoE port, 1 x Gigabit combo,1 x Gigabit RJ45 port
• Standartas: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
• MAC adresų lentelė: 16 K
• Perjungimo talpa: Whole-Device Performance: 14.8 Gbps; Port Performance: 8.8 Gbps
• Paketų persiuntimo greitis: Whole-Device Performance: 11.01 Mpps; Port Performance: 6.55 Mpps
• Vidinė cache atmintis: 4 Mbits
PoE
• PoE standartas: IEEE 802.3af;IEEE 802.3at
• PoE galios jungtis: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE prievadas: Ports 1 to 24
• Maks. PoE prievadų galia: 30 W
• PoE disponuojama galia: 230 W
Programinės įrangos funkcija
• Ilgo diapazono režimas: Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition.
• VIP prievadas: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient
• Prievado izoliavimas: Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
• PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.
• Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 1 aggregation group(s).
• Kilpų prevencija: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
• VLAN: VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
• HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.
   • Sistemos priežiūra: Support device management via web.
   Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
   Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
   Support management via Hik-Central Pro.
   Support remote management via Hik-Partner Pro.
   Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
   Supports 802.1ab LLDP for peer device discovery.
   Support port mirroring for fault locating.
   Pagrindinis
   • Dydis: 440.00 mm x 44.00 mm x 220.80 mm (17.32'' x 1.73'' x 8.69'')
   • Rėmas: Metal material
   • Svoris be įpakavimo: 2.13 kg (4.7 lb)
   • Svoris su įpakavimu: 3.1 kg (6.8 lb)
   • Darbinė temperatūra: 0 °C to 45 °C (32 °F to 113 °F)
   • Sandėliavimo temperatūra: -40 °C to 85 °C (-40°F to 185 °F)
   • Sąlyginė drėgmė: 5% to 95% (no condensation)
   • Maitinimas: 100-240 VAC, 50/60 Hz, Max. 4 A
   • Maks. energijos sunaudojimas: 250 W
   • Energijos sunaudojimas miego režime: 20 W
   • Instaliavimas: Rack (equipped with mounting ears)
   • Iškrovos apsauga: 6 KV
   Patvirtinimai
   • EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
   • Saugumas: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
   • Cheminis tyrimas: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
