Teltonika CAN-CONTROL+IMMO
Aprašymas

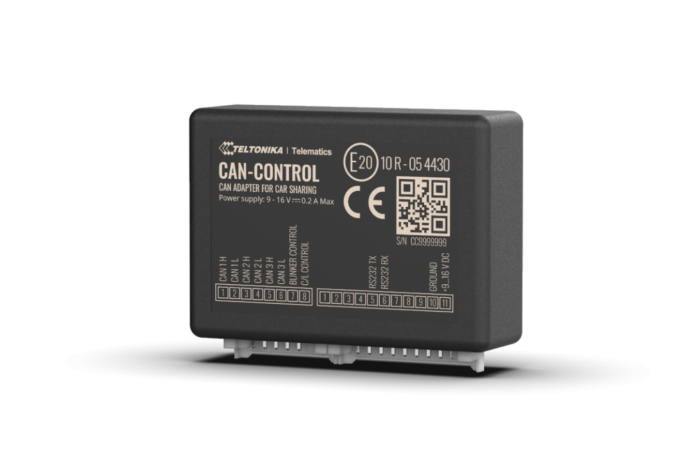

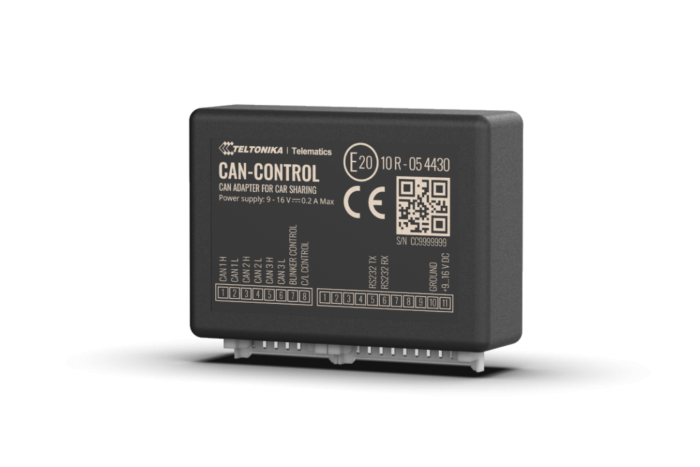

The Teltonika CAN-CONTROL+IMMO is a CAN-bus adapter that connects a Teltonika FMB / FMC GPS tracker to a vehicle's CAN bus, letting the tracker both read CAN telemetry and send control commands back to the car. It wires directly into the vehicle's CAN lines, so remote door control and engine immobilising need no extra relays or aftermarket alarm system. It is the go-to solution for car-sharing, car-rental and corporate fleets, where a user can lock or unlock the car and the operator can block the engine remotely.
Note: the CAN-CONTROL is an accessory - it is not a standalone device and must be paired with a compatible Teltonika tracker (FMB1YX, FM36YX or FMB64X series).
This is the +IMMO (engine block) variant - part code CANCONP5GH01 - which adds an engine immobiliser: block / unblock the engine over CAN, with no relay installation.
What it can do
Read from the vehicle (CAN telemetry):
- Odometer / driven distance, VIN, vehicle speed
- Fuel level, total fuel used, remaining range
- Engine RPM, engine temperature, handbrake status
- Door, lock and lights status
- Electric vehicles: battery level, charging status, charging-cable status, range
Control the vehicle (commands over CAN):
- Central lock - remote door lock / unlock
- Engine block / unblock (immobiliser) - no relay installation required (IMMO option)
- Windows closure, turn-signal lights, trunk release
Why choose it
- Direct CAN connection - no relays or aftermarket security wiring
- Lock/unlock + immobiliser built for car-sharing and rental fleets
- Rich telemetry - fuel, mileage, RPM, EV battery and more, straight from the bus
- Wide vehicle coverage - Teltonika's CAN database supports 1300+ vehicles and keeps growing
- Works with Teltonika FMB1YX / FM36YX / FMB64X trackers
Available CAN data and control functions depend on the specific vehicle's make, model, type and year. Check your vehicle against Teltonika's supported-vehicle list (CAN-CONTROL IMMO) before installing. Professional installation is recommended.
Technical specifications
| Parameter | Value |
|---|---|
| Type | CAN-bus control adapter (car-sharing), variant CANCONP5GH01 (+IMMO, engine block) |
| Supported trackers | Teltonika FMB1YX, FM36YX, FMB64X series |
| Connection | Direct to vehicle CAN lines |
| Input voltage | 9-16 V DC |
| Power consumption | below 23.6 mA standby / below 23.5 mA working (at 12 V) |
| Operating temperature | -40 C to +85 C |
| Operating humidity | max 85% non-condensing |
| Indicators | 1 status LED |
| Dimensions | 51 x 36 x 16 mm |
| Supported vehicles | 1300+ (Teltonika CAN database, growing) |
| Functions | CAN data read + control (lock/unlock, windows, lights, trunk), engine immobiliser (IMMO, engine block/unblock) |
The full datasheet is available in the Parsisiuntimui (downloads) section below.
