Tinklo šakotuvas TRENDNET TE100-S5 5-Port 10/100Mbps

5 kanalų tinklo komutatorius (tinklo šakotuvas) TRENDNET TE100-S5 10/100Mbps (Version v3.0R)

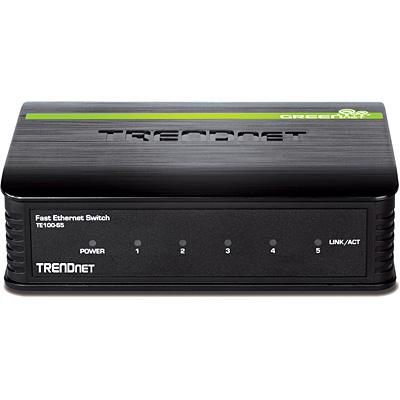

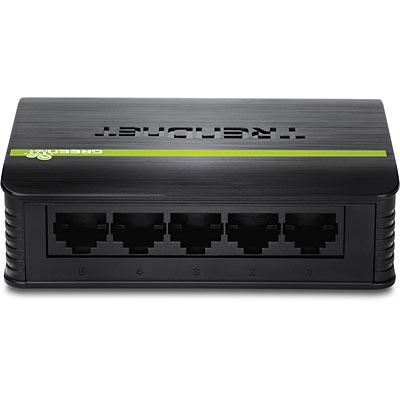

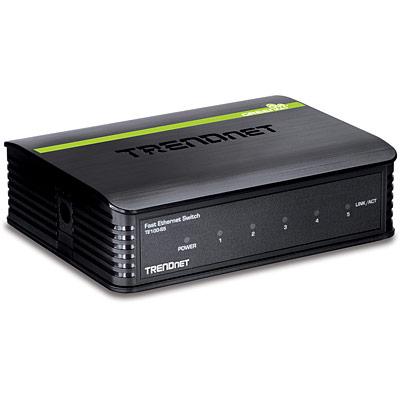

TRENDNET 5-Port 10/100Mbps Switch TE100-S5

The compact 5-Port 10/100 Mbps GREENnet Switch, model TE100-S5, offers plug and play switching reliability and reduced power consumption. Embedded GREENnet technology reduced power consumption by up to 40% out of the box, with no management requirement. This switch offers speeds of up to 200 Mbps per port and total switching capacity of 1 Gbps.

Specifications

Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3az

Device Interface:

• 5 x 10/100 Mbps Ethernet ports
• Power

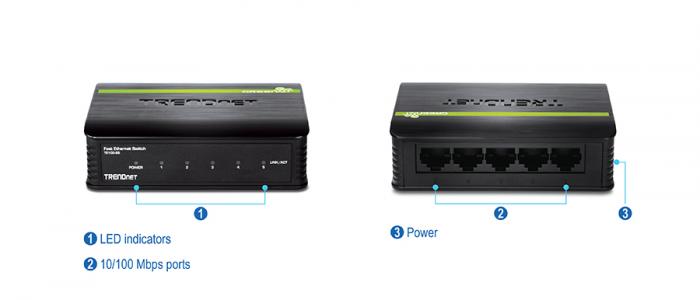

• LED indicators

Data Transfer Rate

• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Performance:

• Data RAM buffer: 56 KB
• Switch fabric: 1 Gbps
• MAC address table: 1K entries
• Forwarding rate: 0.7 Mpps (64-byte packet size)

Special Feature:

• GREENnet energy saving technology

Power:

• Input: 100 240 V, 50/60 Hz, 0.2 A
• Output: 5 V DC, 0.6 A
• Consumption: 1.1 Watts Max.

Package Contents:

• TE100-S5
• Quick Installation Guide
• Power adapter (5 V, 0.6 A)
